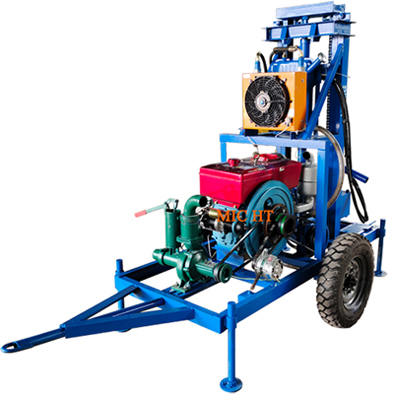

350M Water Well Drilling Machine With Water And Air:

The mechanical top drive series drilling rig is a water well drilling machine independently developed by HT Company that integrates the functions of water drilling and air drilling.
1.The power head adopts mechanical transmission.
2.The water well drilling rig adopts 525 car manual gearbox.
3.One single drilling stroke: 3500mm.
4.Hydraulic automatic opening and closing mechanism for the power head.

1. This water well drilling rig speed can reach 27-901r/min, and the maximum output torque is 10500N.m.

2. This water well drilling machine adopts a long-stroke speed mechanism and a mechanical power head with a single drilling stroke of 3500MM to improve drilling efficiency and reduce the occurrence of drilling blockage and drilling burning accidents.
3. This water well borehole rig adopts a double oil pump for oil supply, a single pump is used for drilling, and double pumps are used together when lifting the pipes or casting the water pipes, the power loss is small and the auxiliary time is short.
4. You can choose wheels type or crawler chassis, and the outrigger oil cylinder stroke of 1.5m can be automatically loaded, which is convenient for relocation and transportation.
5. This water borehole drilling machine reserves some functional interfaces in the mechanical and hydraulic systems, which can be expanded according to the requirements of different users.
